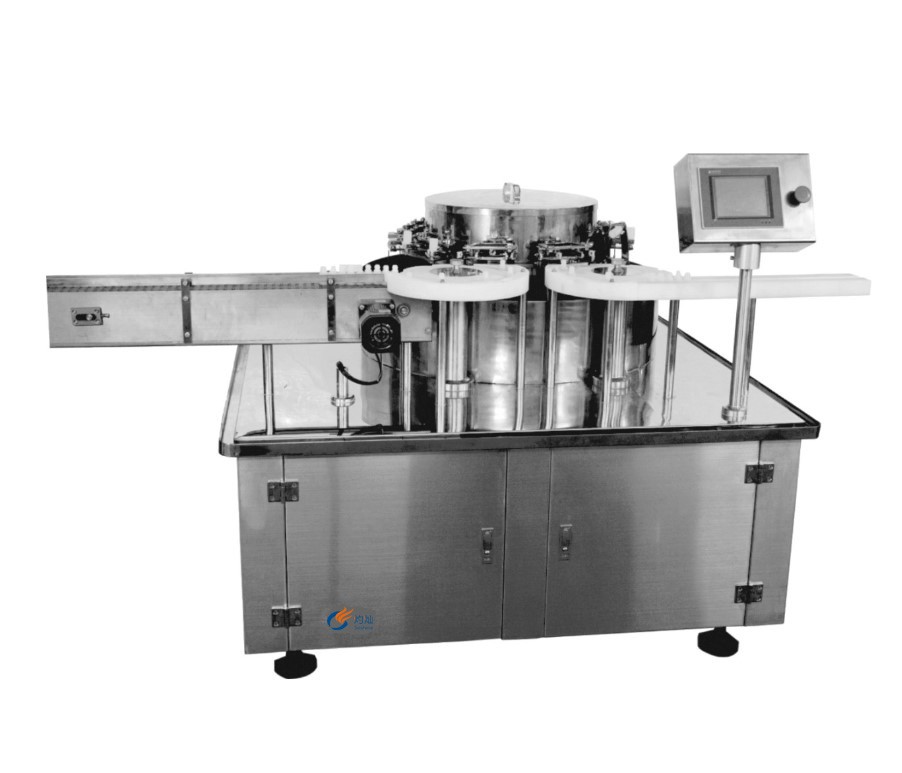

Automatic Bottle washing machine

Product Item：UV-LX

delivery time: 45-120days

Customize or not:Yes

Description

It is suitable for washing 2-30ml plastic bottles. It can be used for all kinds of bottles by manipulator. It can be washed by tracking and inserting water and air to ensure the quality of bottle washing;The consumption of water and gas is low.

Working principle:

The bottle enters the bottle washing machine through the conveyor belt, and then transferred to the manipulator by the rotary table. The manipulator holds the bottle and turns it 180 degrees .The bottle mouth is downward and rotates clockwise with the big turntable. The lower part of the big turntable is equipped with a water spray (steam) pipe with a spray needle. The spray needle is inserted into the bottle according to the program to recycle water (ionized water, water for injection), compress air, purify compressed air again, and spray water vapor outside the bottle to complete the bottle cleaning process, After cleaning the bottle, the manipulator turns the bottle upright (the mouth of the bottle is upward), and then sends the bottle to the next process through the dial wheel.

Specification
